Automatic Capsule Filling Machine

FIRST OF ITS KIND

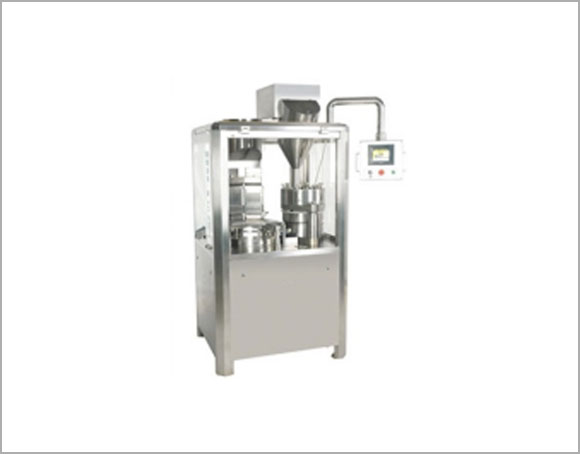

Fully Automatic Capsule Filling Machine from LEOSCOR EXPORTS

The LEOSCOR Fully Automatic Capsule Filling Machine is a result of many years of experience in the field of capsule filling.

Hard gelatine capsule being a very vital dosage form, its automatic filling demands very high accuracy besides high productivity, ease of operation and minimum maintenance. This machine has been specifically designed to meet all these requirements.

It is a continuous motion machine capable of filling upto 50,000 capsules per hour. It uses the auger filling system which enables it to handle powders with a range of physical characteristics. It incorporates a unique loading mechanism that ensures no mechanical damage to capsules or print. It replaces the decades old rectification and loading system. In the process loose caps and bodies are eliminated avoiding machine stoppage. An on-line weight control system the first of its kind ensures precise weight control without operator assistance. The machine guarantees maximum quality in terms of filled accuracy and product safety at a very economical price.

  1. Empty Capsule hopper
  2. Rectifying roller
  3. Magazine
  4. Cap Segment
  5. Body disc
  6. Powder filling hopper
  7. Unopened Capsules rejection unit
  8. Joining station
  9. Discharge chute
  10. Segment cleaning
  11. Weight Control unit
  12. Control station
  13. Auger Motor
  14. Auxiliary powder hopper

OUTSTANDING FEATURES OF THE MACHINE

  • New loading system, prevents damage to capsules and print loading.
  • Eliminates the loose caps and loose bodies.
  • Rejects the unopened capsules.
  • Variable speed auger for precise ON-LINE WEIGHT CONTROL.
  • Unique two stage joining mechanism allows removal of entrapped air to prevent denting.
  • PLC controls with touch screen interface.
  • Simple drive mechanism needs no maintenance.

We also Manufacture following Capsule Filing Machines

The Only Capsule Filling Machine Manufacturerd in India for Global Market - Leoscor Exports

  • LEOSCOR - MX 105
  • LEOSCOR - MX 115
  • LEOSCOR - MX 135

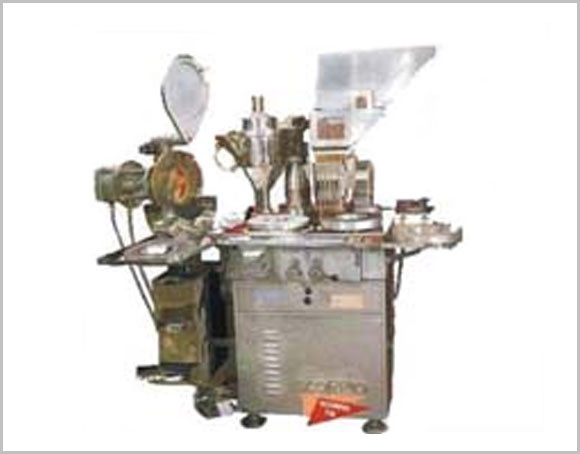

LEOSCOR - MX 105 Capsule Filling Machine

  • Empty Capsule Hopper
  • Powder Hopper
  • Pnematic system to operate the Powder Hopper
  • Control Panel for capsule loader & vacuum pump
  • Automatic closing system
  • Digital Counter
  • Two way CAM to control the stroke of the air 8. cylinder to operate the powder hoppe

Technical Specifications
OUTPUT 15,000 CAPSULES PER HOUR
NOs. OF HOLES IN THE FILLING RINGS
SIZE '0' - 360
SIZE '1', '2', '3', & '4' - 420

LEOSCOR - MX 115 Capsule Filling Machine

    Salient features

  • Very accurate filling (CNC machine made components).
  • Compact & light weight filling ring.
  • Fills capsules of various sizes.
  • 400,000 capsules per shift.

    Other features

  • High, Medium & Low filler augures of stainless steel.
  • Speed choice for powder hoppers.
  • Change over within 30 minutes.
  • Easy operation and & servicing.
  • Uniform flow of repose in the powder hopper.
  • Accuracy within 2 to 4 percents.

Technical Specifications
OUTPUT 20,000 Capsule per hour
NOs. OF HOLES IN THE FILLING RINGS
SIZE '0' - 480
SIZE '1', '2', '3', & '4' - 540

LEOSCOR - MX 135 Capsule Filling Machine

Technical Specifications
OUTPUT 30,000 Capsule per ho
SIZE '0' - 600
SIZE '1', '2', '3', & '4' - 720

Utilities

Utilities
VACUUM REQUIRED 380 MM to 50 MM of HG AT 1000 LTRS./MIN DISPLACEMENT (15" TO 20" OF HG AT 35% (FM)
COMPRESSED AIR 7 KG - / SQ. CM, 8,2 CFM
MOTOR
380V/440V/50HZ
1.5 HP - MACHINE
3 HP - VACUUM PUMP
2 HP COMPRESSOR
ALSO AVAILASBLE 60HZ 220V 3PHASE

SPECIFICATION

Specifications
MACHINE
DIMENSION
NET WEIGHT
GROSS WEIGHT
FLOOR SPACE
MX 105
65" x 56" x 64"
0850.000KG
1150.000 KG
113" x 104"
MX 115
65" x 56" x 64"
0950.000KG
1200.000 KG
113" x 104"
MX 135
75" x 56" x 72"
1050.000KG
1350.000 KG
123" x 104"
