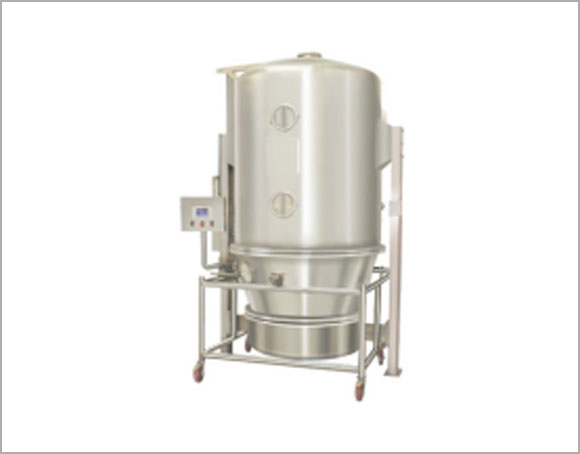

Fluid Bed Dryer

Tablet

Fluid Bed Dryer

Over 500 installations

30 KG STANDARD - GMP

Salient Features

  • All stainless steel CGMP models and basic models with only product contact parts and air path in stainless steel
  • Optional single piece retarding chamber and finger bag chamber with imported inflatable seals.
  • Optional hinged swing type retarding chambers.
  • Bucket type bottom chamber above ground level.
  • Spray granulation.
  • Pneumatic lifting & locking for product container with retarding chamber.
  • Heating by electricity (upto 120 KG models only), steam / thermic fluid OR diesel oil / LPG gas fired hot air heating systems with stainless steel heat exchangers.
  • Fully automatic bag shaking
  • Intrinsically safe earthing arrangement
  • Inlet-air filtration system with 0.3 micron hepa filters
  • Rear chamber with heating coils and air inlet filter modules to be mounted in remote areas
  • Fan motor unit to be mounted in remote areas
  • Stainless steel interconnecting duct lines with flanges for connecting remote mounted heating and fan motor modules
  • Noise level below 90 DB with specially designed silencer Microprocessor based control panels with time v / s temperature controls, batch programming, batch data printout

Technical Specifications

MODEL
10
30
60
120
200
300
400
500
DRYING CAPACITY
PER BATCH
10 / 15
30 / 40
60 / 75
120 / 150
200 / 250
300 / 350
400 / 450
500 / 550
PRODUCT CONTAINER VOLUME (LTRS)
30
100
200
440
670
1000
1330
1660
MOTOR (HP / KW)
2 / 1.5
5 / 3.7
10 / 7.5
15 / 11
20 / 15
25 / 18.5
30 / 22.5
40 / 30
HEATING LOAD (KW)
9
18
30
60
