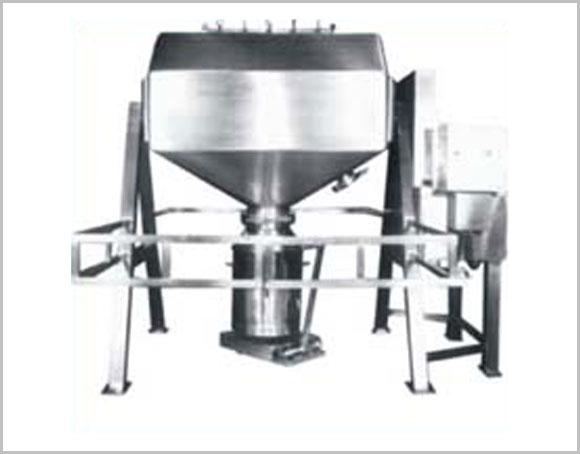

Octogonal Blender

Salient Features

  • Contact parts in stainless steel 304 or 316.
  • Octagonal shaped with rectangular center, conical discharge frustum and rectangular top frustum.
  • Baffles provided in the shell.
  • Manhole with gasket is provided to fix baffles and for ease of cleaning the shell.
  • Charging and discharging is through a butterfly valve. A conical adaptor can be provided for fixing charging
  • Drum after butterfly valve.
  • Unit can be provided with bin charging arrangement.
  • All moving parts are enclosed in guards.
  • A safety railing with a limit switch is provided for operator safety.
  • Manual Inching arrangement can be provided.
  • Flame - proof motors with flame - proof push button stations can be provided.

Technical Specifications

MODEL
GROSS VOLUME
litres
WORKING VOLUME
litres
MOTOR
hp
OUTPUT SPEED
rpm
DISCHARGE VALVE
inches
OVERALL DIMENSIONS
mm
WIDTH
DEPTH
HEIGHT
OB 5
12
10
0.5
12
4"
600
350
600
OB 10
25
20
0.5
12
4"
700
400
800
OB 25
50
40
0.5
12
4"
900
1200
1400
OB 50
125
100
0.5
8
6"
1100
2000
2200
OB 100
250
200
1
8
6"
1200
2200
2500
OB 150
375
300
1
5/10
6"
1400
2200
2500
OB 200
500
400
1.5
5/10
6"
1400
2400
2600
OB 250
625
500
2
5/10
8"
1500
2600
2600
OB 500
1250
1000
3
5/10
10"
1800
2800
2900
OB 1000
2500
2000
5
5/10
12"
2000
3000
3200
