Semi Auto Microdosing / Powder Filling Machine




Semi Auto Micro Dosing Machine, Powder Filling Machine, Manufacturing of Semi Auto Micro Dosing Machine, Powder Filling Machine, Mumbai, India

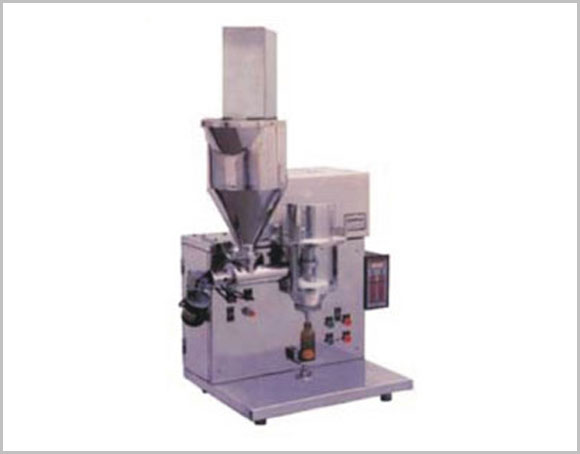

Semi Auto Microdosing /
Powder Filling Machine





This table top machine has been rated ideal for microdosing sterile dry powders and external dry syrup filling. The design is unique and extremely functional. The equipment is simple to operate, easily moveable and occupies minimal space. This machine gives optimum production with minimum weight variation. This machine is suitable for filling 100 mg. to 75 gms. with interchangeable parts. On request this machine can be Manufacturerd to fill 75gms. to 150 gms.

SALIENT FEATURES:

Versatile, can handle microdosing and dry syrup powder filling Pre-set revolution control with digital display for quick setting of fill weight Instant brake mechanism for precise fill weight Powder level maintaining system for maintaining constant level of powder to facilitate minimum weight variation Weight variation ±2% max normally within 1% Quick interchangeability in minutes for changeover of products
No mechanical settings hence can be set and operates by unskilled operator Counter. provided to count number of fills.All contact parts made of stainless steel for better GMP Compact and easily moveable from place to place


To maintain optimum output the machine is supplied in the following weight combinations for which interchangeable parts are supplied at extra cost

100 mg to  1 gm 5 gms to 15 gms 50 gms to 75 gms 75 to 150 Gms can be supplied with Larger Hopper and Dosing Chamber
1 gm to 3 gms 15 gms to 30 gms
3 gms to 5 gms 30 gms to 50 gms

TECHNICAL SPECIFICATIONS:
0.5 H.P. Motor (Supplied with 440 V 3 phase or 220 V Single phase or as per customer's requirement).
Electro magnetic clutch/brake combination unit with 24 V. D.C. Supply.
Feed motor with 1 2 V. D.C. Supply.
Stirrer geared motor with 220 V single phase
OUTPUT for dosing at pre-set counts:
30 - 35 FILLS /MIN. for Microdosing dry powder injectables.
25 - 30 FILLS / MIN. for Dry Syrups and other powders.
Dimensions :
35"(W) x 25"(D) x 47"(H).
Weight : 1 60 Kgs. approx
Gross weight : 230 Kgs. approx.
