STEAM STERILIZER

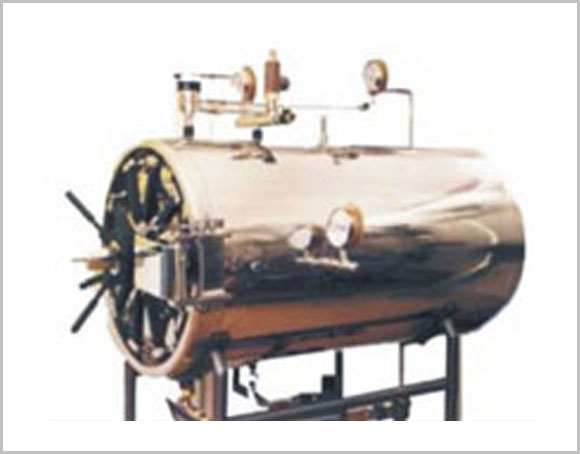

Vitro Pharma Machine provides High-Pressure Horizontal Steam Sterilizer which is designed by maximum thermodynamic efficiency, robust in construction with an aesthetic and elegant finish. This Horizontal Steam Sterilizer is mostly used in medical, scientific and surgical industries hospital operating rooms, supply departments, central sterile, dental schools, ambulatory surgery centers, along with other clinical settings.
- Advanced process technology for reduced water consumption and quick cycles.
- Low-noise air pump, integrated steam generator and stainless steel piping with minimal flange connections.
- Easy and large-area service access.
- A wide variety of options such as an external vacuum pump, integrated Bowie-Dick test and a steam switch-over for high flexibility.

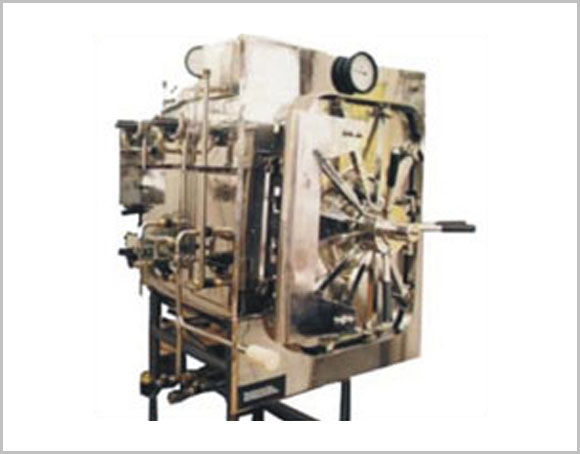

Vitro Pharma Machine provides Rectangular Steam Sterilizer which is safe and auto-controlled sterilizer and designed for the unit of medical pharmacy, science, health and technology etc. Also, this Rectangular Steam Sterilizer machine is suitable for sterilizing of dental, surgical and glassware medicine, eye instruments and other goods.
- Self-locking safety.
- High-Grade strong Stainless Steel and Triple walled construction.
- Permits two exhaust speeds fast & slow.
- Warm resistant Silicone door gasket.
- Gauge glass with an automatic closing safety valve.
- Pressure switches on electric models.
- Temperature Controller.
- Low Water Cut-off with water indicator .
- Air breaker/dryer inlet & outlet.
- Smooth and easy to operate.
- Safety importance for the jacket/boiler.
- Superb ejector for drying.
- Furnish with a cooling attachment for fast cooling.

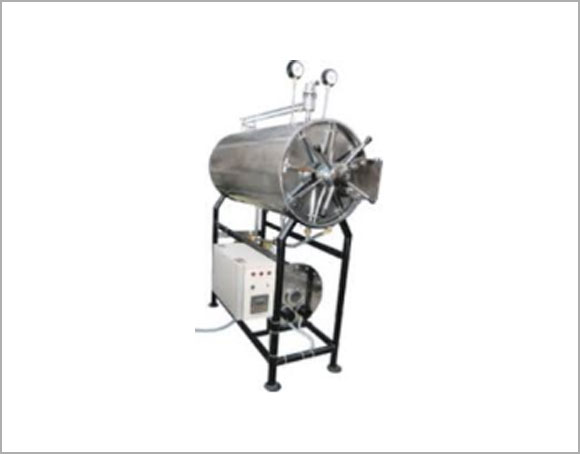

Horizontal cylindrical sterilizer with an electric steam generator resting on a robust stand |
|
Internal dimensions of cylindrical sterlizer in mm |
|
Diameter |
Depth |
400 |
600 |
400 |
1100 |
500 |
1100 |
600 |
1100 |
Rectangular sterilizer with trolley loading |
||
Internal dimensions of rectangular sterilizer in mm |
||
Width |
Height |
Depth |
600 |
600 |
1200 |
600 |
900 |
1500 |
90 |
900 |
1800 |
120 |
1200 |
2400 |
The above sizes are only indicative we can Manufacturer sterilizers as per client's required dimensions.
The Steam Sterilizer can be operated either by steam supplied directly from your boiler, through a Pressure reducing valve or by a built in electrical steam generator depending on the size of the sterilizer and as the process demands.
The inner chamber of the sterilizer is fabricated from the best quality of stainless steel 316. The chamber is reinforced by "stays" on its outer periphery to give it added strength so as not to give way, even under dire circumstances. The doors are hinged, self aligning with radial "Shooting bolts". A sensitive pressure locking system is provided so that the doors automatically lock under pressure.

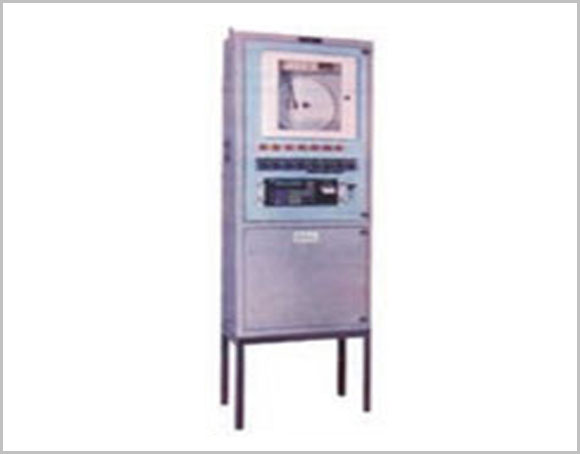

The sterilizer may be supplied with manual operation or with automation, incorporating microprocessor / PLC controls leading to accurate, trouble-free and exact duplication of operations. Menu based programming with on-line limit checking thus, making programming simple as well as fool-proof. With the help of the built-in full function temperature scanner, logger and printer, periodic validation checks are not only obviated but instead, the system provides one with ON-LINE VALIDATION as well as EVENT LOGGING for all 24 hrs of the day, every day.
- Pressure & Compound gauges
- Dial type thermometer
- Steam inlet valve for chamber
- Safety valves
- Steam ejector
- Air vent line
- Steam traps with check valves
- Vacuum breaker for jacket.
- High pressure High Vacuum Sterilizer
- Pressure reducing valve
- Rapid Heating system
- Rapid cooling system
- Thermograph
- Microprocessor / PLC control system
- Door interlocking system etc.
