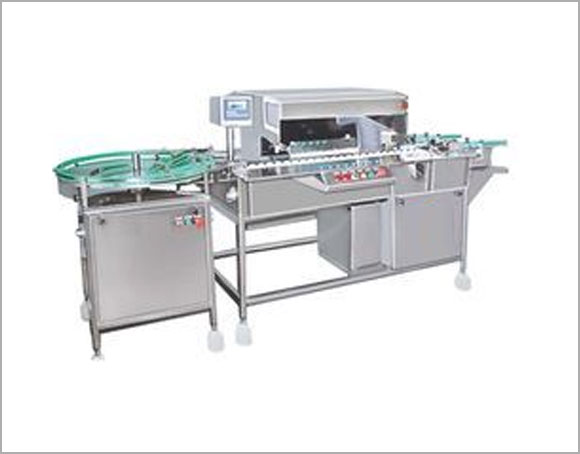

Vial Inspection Machine

Salient Features

  • High capacity due to short transport time and simultaneous inspection of 6/5/4/3/2 Objects depending on size of object.
  • Simple design allows easy change of object holder spacing to enable machine to handle large objects.
  • Absolute secure guidance and holding of the object by very efficient mechanical system.
  • Clear and functional illumination of object adjustable to the operator's field of vision.
  • The good objects are discharged in a group.
  • Quick change of size parts and easy cleaning.
  • Best illumination system.
  • The rotation velocity is infinitely variable.
  • Sturdy and simple construction consciously avoiding all parts that need frequent repair.
  • Discharge chute for customer's own magazine.
  • Machine can be in line connected with existing sealing & labeling machine.
  • Digital counter for infeed and ejected vials.
  • Microprocessor based logic controllers for Rejection failsafe alarm.

TECHNICAL SPECIFICATION

Technical Data
Working Range Of Objects And Output Of Models Model Maximum Size Maximum Output
6 Objects upto 18.00 mm dia x 150 mm height 85/ min
5 Objects upto 22.50 mm dia x 150 mm height 72/ min
4 Objects upto 28.00 mm dia x 140 mm height 60/ min
3 Objects upto 38.00 mm dia x 130 mm height 45/ min
2 Objects upto 55.00 mm dia x 125 mm height 28/ min
Amplification 1 : 1 : 54
Power Required 0.75 KW approx
Electrical connection 230/240 V, 50 cycles, Single/ Three phase
Working Height Height upto turn table : 1100 mm
Height upto middle of lens : 1140 mm
Discharge chute height : 1160 mm
Transport Direction From left to right
Dimensions 2000 (l) x 1000 (b) x 1650 (h)
Net Weight approx : 800 kgs
