Blister Packing Machine Manufacturer

Tablet

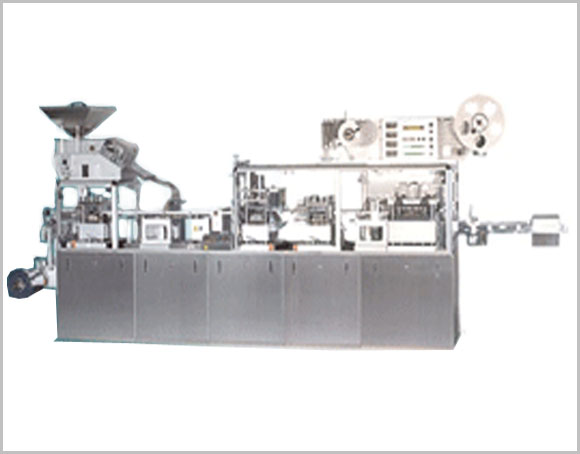

Blister Packing Machine

Blister Packing Machine

Vitro Pharma Machine provides high-quality Blister Packaging Machines which are suitable for handling automatic loading, filling or non-stop feeding. Blister Packaging Machine is widely demanded its long lasting life cycle and superior built quality. Blister Packaging Machine’s world-class quality, reliability, performance and cost-effective range make it an ideal choice for pharmaceutical business of any size.

Blister Packaging machines use warmth and weight through a die to form the cavity or pocket from a roll or sheet of plastic.

Features:

  • Universal feeder assembly ensures the similarity between various nourishing channels
  • Low-level sensor with caution sign for base and lidding material
  • End of a base and lidding material recognition with machine auto stop
  • High vacuum framing limit
  • Edge to edge print registration sparing foil cost
  • Both side rigidly supported preheating & sealing station ensure better forming/sealing

Technical Specifications

Technical Specification
Model
Unit
LPM-F III
Machine speed (cycles)
stroke / mm
max. 50
Bottom foil

PVC, PVDC, ALU
Cover foil

ALU foil, Paper
Film width
mm
max. 245
Film advance
mm
max. 125
Effective surface
mm
max. 123 x 237
Forming depth
mm
18 (25) (35)
Power consumption
approx. KVA
7 KVA
Air consuption
approx. L/min
250
Air pressure
KGF /cm
6
Net weight
approx. Kg
1,700
Reel diameter Bottom foil
mm
max. 500
Cover foil
max. 250
Core diameter
mm
70-76
Diamension Height
mm (approx.)
1925
Width
800
Length
5017
