Strip Sealing Machine Manufacturer

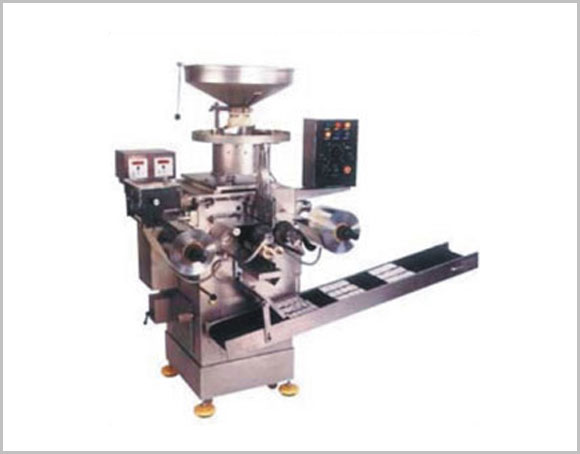

Strip Sealing Machine

Vitro Pharma Machine provides Strip Sealing Machine which use to operate on cutting-edge technology and offer optimum performance. Strip Sealing Machine is built on advanced technology to fulfill the requirement in the pharmaceutical packing industry. These Strip Sealing Machines are most suited for speedy sealing of coated or uncoated tablets, capsules or lozenges of any shape or size in diverse sealing materials like aluminum foil, polyethylene, cellophane or any other heat sealing material.

Strip packaging widely comes in Pharmaceutical, Confectionery, Engineering and Industrial product sectors. This Strip Packaging machine is designed to handle a wide range of products with utmost precision and speed up to 2400 units per minute.

SALIENT FEATURES

  • Strip Sealing Machine gives high speed and uninterrupted performance at minimum maintenance charges.
  • Standardized in quickly interchangeable parts
  • Compact steel fabricated body with adequate inspection windows
  • Adjustable foil cutting and slitting device. Noiseless, trouble-free smooth operation
  • Vibratory feed control for higher output
  • Cavity shape and knurl design of choice
  • Cartridge type heaters and thermostatic temperature control suitable for each type of packing material
  • Ensures leak-proof packaging

Applications

Strip Sealing Machine is used in Pharmaceutical Tablets, Hard gelatin capsules, Granules, Dragees, Powders etc. Also used for Sugar Cubes, Lozenges, Biscuits, Chewing Gums, Toffees, Buttons, Pins, Pencil Batteries, Small ball bearings and many other small components.

Technical Specifications

Technical Specification
Models
2 Track
4 Track
6 Track
8 Track
10 Track
Output Max Tabs / min
600
1200
1800
2400
3000
Foil Width Max mm
70
140
210
250
300
Motor Power kw
0.37
.037
0.37
0.56
0.56
Heating Load w
2x500
2x750
2x1000
2x1200
2x1500
Machine Dimensions (Unpacked)
Height With Stand mm
1830
1830
1830
1830
1830
Height Without Stand mm
1600
1600
1600
1600
1600
Width mm
1320
1320
1320
1320
1320
Depth mm
890
960
1030
1100
1150
Machine Weight approx Kg
360
400
440
480
520

Manufacturer, Supplier, Exporter & Servicing of Strip Sealing Machine Sealing Materials like Aluminum Foil, Polyethylene, Cellophane or any other Heat Sealing Materials in India
