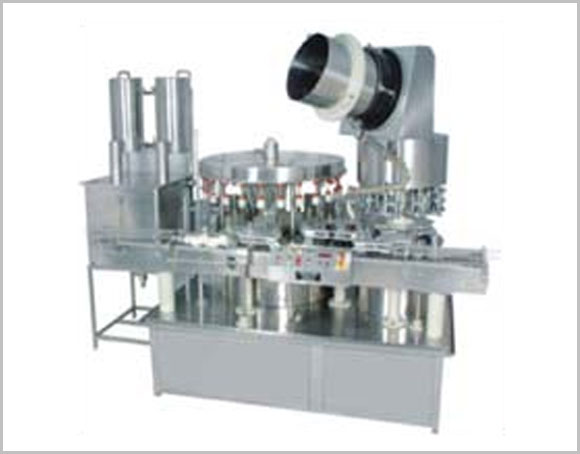

Rotary Vaccumetric Filling Machine Manufacturer

Vitro Pharma Machine provides Rotary Vaccumetric Filling Machine which is widely used in the pharmaceutical industry for filling up the liquid syrup in an exact volume. This Rotary Vaccumetric Filling machine is made by using high-quality materials in accordance with current industry standards and is available at an affordable price.

• Machine-based on advanced synchronized technology.
• Single Operator for Two Operations.
• Dependable high production performance with in-built safety factors for long term reliable operation.
• Less Floor Area - as immediate sealing of filled bottles.
• Accuracy depends on bottle size.
• Centralized Volume Adjustment System - no downtime in volume settings.
• No container No Fill for Individual head & hence no spillages.
• Cap Feeder settled main head which is suitable for operating.
• Sensor for no cap in the chute - Machine stops.
• Better finish polished, S.S. 304 sheer used.
• Synchronize conveyor drive which is automatically suited with machine speed.
• Electronic budge indicate liquid level in vacuum tank if overflow additional sensor - provided on Cap Chute to avoid damage of caps during rotation.
• All the content part from S.S. 316 material.
• All the content part from S.S. 316 material.
• Machine speed control by AC varies Speed Drive system.
• Optimum performance.
• Enhanced service life
• Excellent strength.

  Technical Specification

  Technical Specification
  Head	24 X 8
  Max. Output/Hour	4000 to 12000 / hr. (2200 liter filling/hr)
  Input Specification	30mm to 90mm diameter, 100 mm to 300mm height
  Machine	2650mm L x 1600mm W x 2200 mm H
  Filling Capacity	100ml to 750ml
  Power Rating	3 HP for main drive, ½ HP for Orienting & 2 HP
  Power requirement	415 Volt, 3 Phase, 50 hz. 5 core wire system
  Machine Weight	2500 Kgs Approx

• Model based on advanced synchronized technology.
• Single Operator for Two Operations.
• Dependable high production performance with in-built safety factors for long term reliable operation.
• Less Floor Area - as immediate sealing of filed bottles.
• Accuracy depends on bottle size.
• Centralized Volume Adjustment System - no down time in volume settings.
• No container No Fill for Individual head & hence no spillages.
• Cap Feeder settled main head which is suitable for operating.
• Sensor for no cap in chute - Machine stops.
• Better finish polished, S.S. 304 sheer used.
• Synchronize conveyor drive which is automatically suit with machine speed.
• Electronic budge indicate liquid level in vacuum tank if overflow additional sensor - provided on Cap Chute to avoid damage of caps during rotation.
• All the content part from S.S. 316 material.
• Machine speed control by AC varies Speed Drive system.
