Manual Capsule Filling Machine

Capsule

Manual Capsule Filling Machine

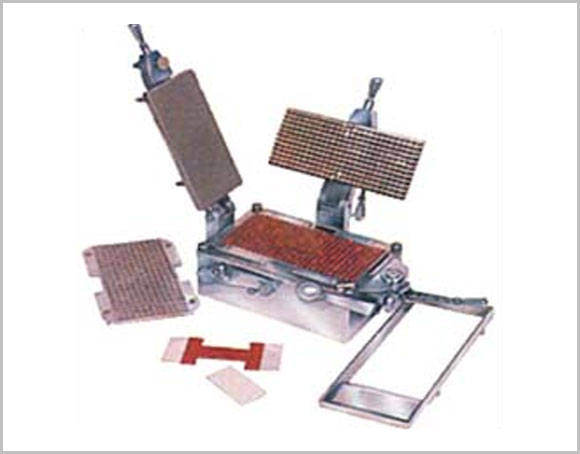

MANUAL CAPSULE FILLING MACHINE

  • The machine is designed for filling a wide variety of formulation suitable for all classes of pharmaceutical industry.
  • The machine is simple to operate with no variation.

MODELS 100-200-300 holes GMP & STD

  • GMP : The machine is fully made out of stainless steel 304 quality except harden and Lubricant parts.
  • STD : All parts that come into contact with filling powder are made out of stainless steel 304 quality and the UN contact part are made out of mild steel duly hard chrome plated.

OUTPUT

  • 8000 capsule per/hour from 300 holes machine.
  • 4500 capsule per/hour from 200 holes machine.
  • 2000 capsule per/hour from 100 holes machine.

INTERCHANGEABILITY

The machine is Manufacturerd to suit the following capsule size combination 00/0/1/2 or 3/ 4 or 5.

FEATURES

  • Low investment, Benefit ration Simple to operate can be handled by UN skilled labor.
  • All the loading plates are made of s.s. 304 quality.
  • Easily dismantle and reassembled even by unskilled labor.

Dimension

Machine 300 holes 200 holes
Length 405mm 365mm
Width 300mm 270mm
Height 455mm 380mm
Weight 40.00kg 26.00kg
