Planetary Mixer / Emulsifier





Planetary Mixers are used for dry mixing and dough mixing. The homogenous mixing af various lngredients of different densities in different proportions for solid/solid, liquid/solid, and liquld/Iiquid is achieved effectively by the use of Planetary Mixer.

Vacuum Jacketed Planetary Mlxers for the preparatlan of aintment; toothpaste; creams; suspensions. are designed to achieve the best results.

All contact parts are made from S S 304 or SS 316 steel as per client's requirements. Standard Mixer is available in 200, 350 and 600 Ltrs... capacities.

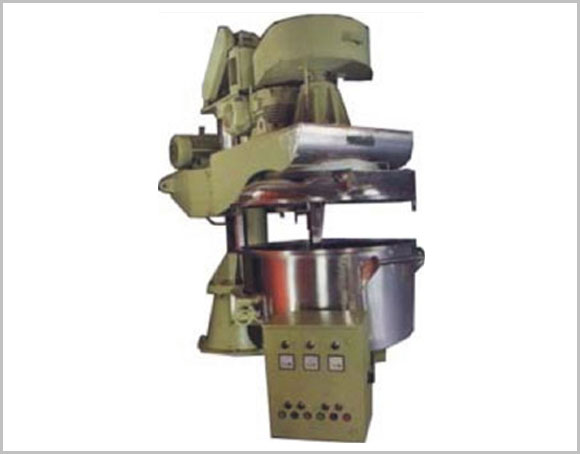

The Planetary motion af the mixing beater ensures effective homogenous mixing of the various ingredients. Standard Mixer consists of single mixing beater which rotates in planetary motion i.e. clock wise direction about the central axis and anticlock wise direction about its own axis. The main drive, lifting and lowering operations is motorised. The product bowl is mounted on castar wheels for easy portability for washing and transporting the material.

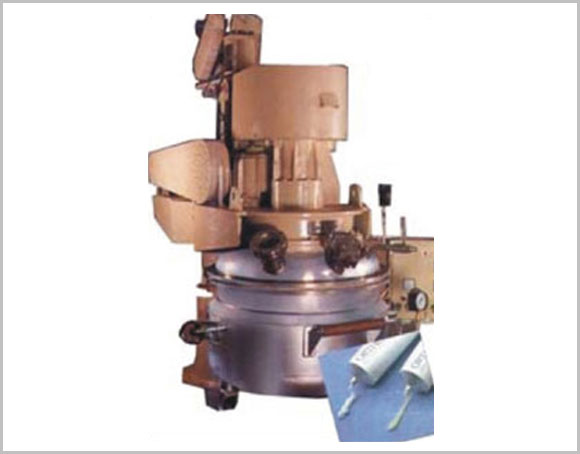

Vacuum Jacketed Mixer consists of two open beaters moving in planetary motion, scraper blade and centrally located high shear emulsifier run by a separate motor for Manufacturer of creams, ointments, suspensions etc.

Technical Specifications:
MODEL S200 S350 S500 V200 V350 V600
Gross Capacity
Ltrs
200
380
520
200
350
600
Blow ID mm
750
900
1050
750
900
1100
Blow Ht mm
500
600
600
540
600
700
Main Motor HP
7.5
10.0
15.0
7.5
10.0
15.0
Lift Motor HP
1.0
1.5
2.0
1.0
1.0
2.0

3.0
5.0
7.5
Overall Dimensions
mm
1100x
1900x
2100
1100x
2200x
2450
1400x
2750x
2500
1100x
2100x
2600
1255x
2775x
2600
1525x
2775x
2850
Net Wt. kgs
1500
1800
2600
1800
2400
3500
Gross Wt. Kgs
2100
2400
3200
2400
3150
4250
