Vial Filling Stoppering Machine

Injectable Section

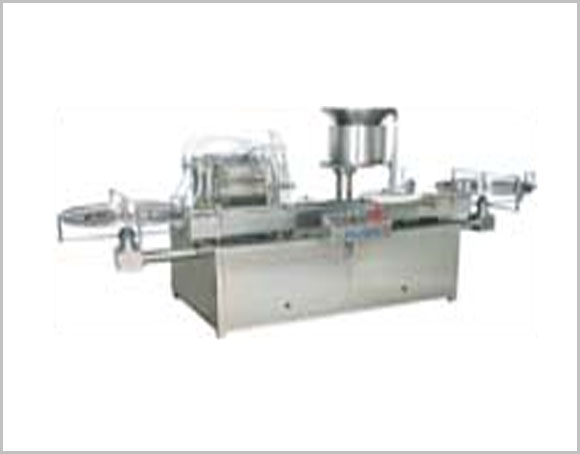

Vial Filling Stoppering Machine

TECHNICAL SPECIFICATION

Technical Specification
  Two Head Four Head Six Head Eight Head
Output/Hour 3000/Hour 6000/Hour 9000/Hour 12000/Hour
Capacity 2ml to 100ml –With the help of change parts
Accuracy ± 1 % Filling accuracy on single doze
Electrical Rating
- Main Machine Motor
- Conveyor Motor
1.00 H.P. (for Two/Four/Six Head Machine)
1.50 H.P. (for Head Head Machine)
0.5 H.P.
Power required 230 Volts, Single Phase.50 Hz (4 wire system)
Conveyor Height 780mm to 860mm adjustable
Input specifications Dia.- 16mm x 55 mm
Height- 110mm
Stopper 13mm, or 20mm
Filling Rnge. 2 ml To 50ml in Single stroke. 100ml in Double Stroke.

Salient Features

  • Inbuilt Scrambler & Unscramble. 24".
  • Suitable For 2 ml to 100ml vial.
  • No vial no filling.
  • No stopper machine stop.
  • Rigid vibration free construction for trouble free performance.
  • S.S. Elegantly matt-finished body.
  • Elegant and easy control panel for total control on operation.
  • Minimum change over time from one size to another container or fill size.
  • Drip Trey provided.
